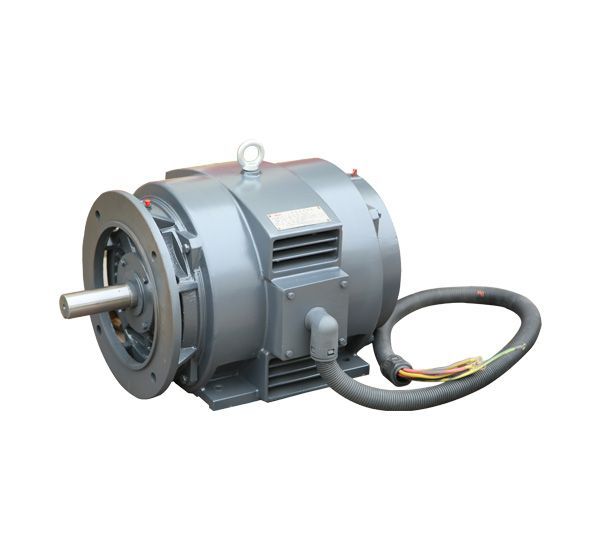

Designed for versatility and efficiency, our series of three-phase asynchronous motors is suitable for a wide range of general-purpose applications. The motors feature a high-quality steel construction, optimized for structural rigidity and strength. This ensures reliable performance, low vibration, and minimal noise, while reducing energy consumption.

Specifications:

IEC Standard

Cooling IC01, protection class IP23, F class insulation, Class B temperature rise.

Frame size: 160mm to 280mm.

Poles: 2, 4-pole optional

Rated power: 15kw ~ 315kw, S1 duty.

Rated voltage: 220 / 380V, 380 / 660V, 230 / 400V, 400 / 690V.

Rated frequency: 50 / 60Hz.

Ambient temperature: -15 ℃ ~ 40 ℃.

Bearing Brand: SKF

Wiring: Delta Connection

 Other Optional Specifications:

1 Heat protection: windings and / or bearings installed PTC, PT100.

2 junction box: from the drive end direction, can be installed on the left and right motors.

3 may provide extended the lead.

4 Enhanced Power Factor: 1.15, 1.25.

5. H-class insulation and high temperature environments.

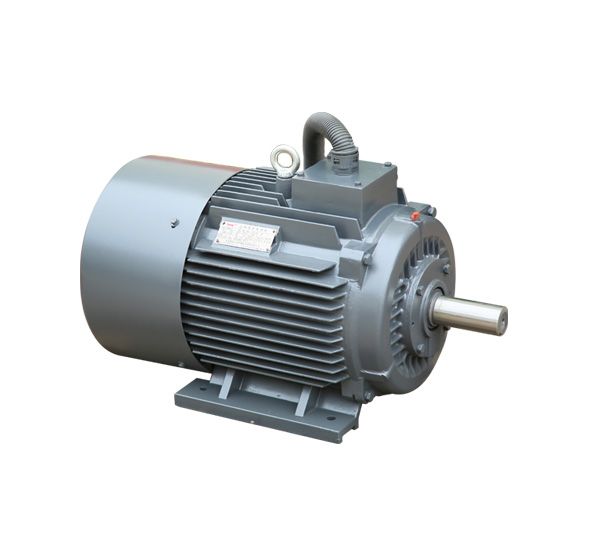

Engineered for reliability and efficiency, the EMACo5AC three-phase asynchronous motors are designed for B3 and B35 mounting configurations. With a totally enclosed fan-cooled structure, these motors are ideal for powering a variety of industrial applications, including fans, pumps, compressors, conveyor belts, and other general-purpose machinery.

Specifications:

IEC Standard

Cooling method IC411, protection class IP54, F class insulation, B grade temperature.

Frame size: 80mm to 355mm.

Poles: 2, 4, 6-pole optional

Rated power: 0.55kw ~ 355kw, S1 duty.

Rated voltage: 220 / 380V, 380 / 660V, 230 / 400V, 400 / 690V.

Rated frequency: 50 / 60Hz.

Ambient temperature: -15 ℃ ~ 40 ℃.

Bearing Brand: SKF

Wiring: 0.75-3kw use star connection, 4-355kw use delta connection

Other Optional Specifications:

1 Heat protection: winding install PTC, PT100.

2 junction box: from the drive end direction, can be installed on the left and right motors.

3 may provide extended the lead.

4 Enhanced Power Factor: 1.15, 1.25.

5. H-class insulation and high temperature environments.

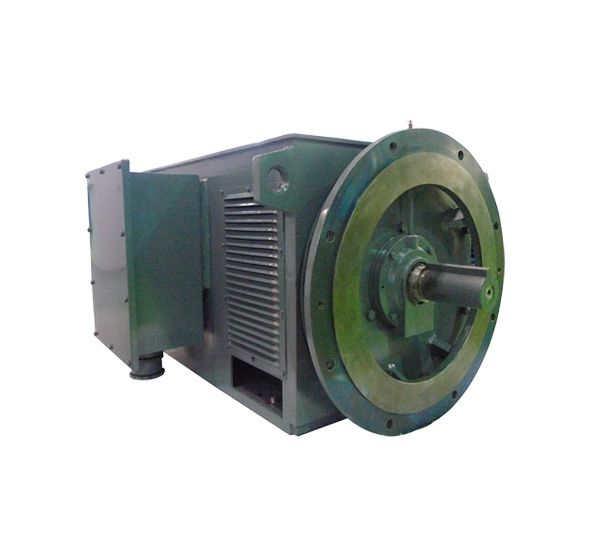

Three-Phase Variable Frequency Motor equipped with a separate line axial fan cooling system. The motor utilizes a high-performance electromagnetic design and advanced insulation system to deliver reliable performance across a wide speed range. Capable of constant torque operation from 5 to 50 Hz and constant power operation from 50 to 100 Hz

Specifications:

Model: EMACo 355-630

Standards: IEC

Efficiency indicators: standard and efficient

Frame Range: 355-630 (3KV, 6KV); 400 ~ 560 (10KV) cast iron machine base

Power range: 160 ~ 2800kw;

Voltage: 3KV, 6KV ,, 10KV

Frequency: 50Hz, 60Hz

Poles: 24 pole

Protection class: IP23

Cooling: IC01

Bearings: SKF

Ambient temperature: -15 ℃ ~ 40 ℃

Installation: B3 right auxiliary junction box in the main terminal box ipsilateral

Auxiliary components: Each winding 2xPT100; each bearing 1xPT100 plus
