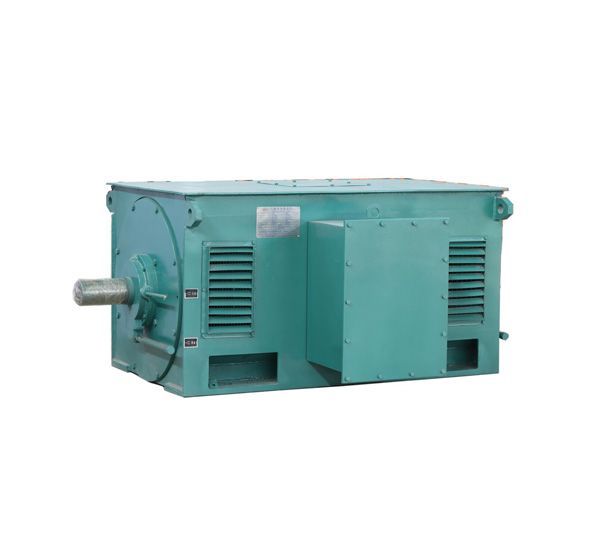

Our reliable and efficient  series of general-purpose three-phase asynchronous motors offers reliable and efficient power solutions for a variety of applications. Ideal for driving: ventilation systems/fans, fluid transfer systems, compressors, conveyor belts and other general-purpose machinery

Specifications:

Model: EMA 355-630

Standards: IEC

Efficiency indicators: standard and efficient

Frame Range: 355-630 (3KV, 6KV); 400 ~ 560 (10KV) cast iron machine base

Power range: 160 ~ 2800kw;

Voltage: 3KV, 6KV ,, 10KV

Frequency: 50Hz, 60Hz

Poles: 246 810 pole

Protection class: IP23

Cooling: IC01

Bearings: SKF or C&U

Ambient temperature: -15 ℃ ~ 40 ℃

Installation: B3 right auxiliary junction box in the main terminal box ipsilateral

Auxiliary components: Each winding 2xPT100; each bearing 1xPT100; plus tropical

Surface color: RAL 5010

Main applications: fans, pumps, compressors, conveyor belts and other general-purpose machinery and equipment

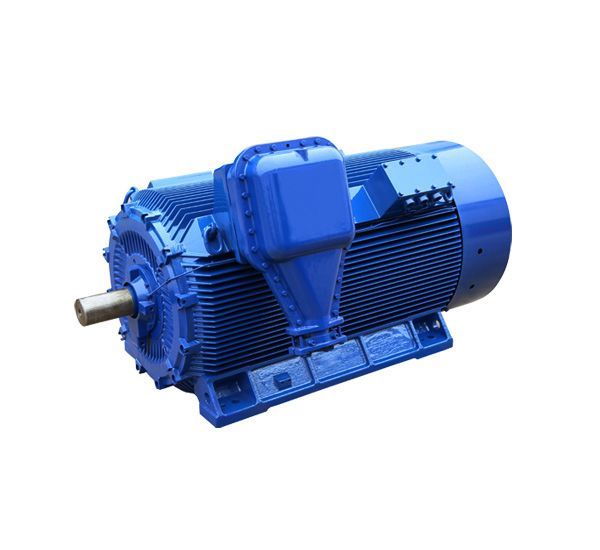

Our general-purpose foot-mounted three-phase asynchronous high voltage motor series. Ideal for powering a wide range of equipment, including fans, pumps, compressors, conveyor belts, and other general-purpose machinery and equipment.

Specifications:

Model: EMA2 355-560

Standards: IEC

Efficiency indicators: standard and efficient

Frame Range: 355-560 (3KV, 6KV); 400 ~ 560 (10KV) cast iron machine base

Power range: 160 ~ 1600kw;

Voltage: 3KV, 6KV ,, 10KV

Frequency: 50Hz, 60Hz

Poles: 246 810 pole

Protection: IP55

Cooling: IC411

Bearings: SKF or C & U

Ambient temperature: -15 ℃ ~ 40 ℃

Installation: B3 right auxiliary terminal box in the main terminal box ipsilateral

Auxiliary components: Each winding 2xPT100; each bearing 1xPT100; plus tropical

Surface color: RAL 5010

Main applications: fans, pumps, compressors, conveyor belts and other general-purpose machinery and equipment

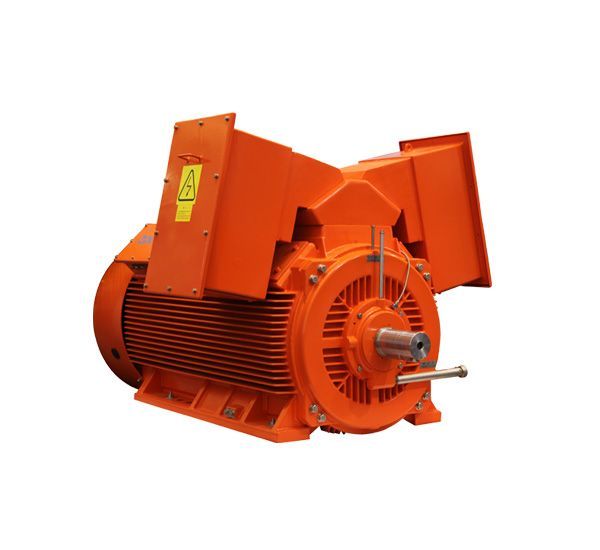

This three-phase variable frequency motor series employs a separate line axial fan for forced cooling, ensuring optimal thermal performance. It features a high-performance electromagnetic design and insulation system, enabling reliable operation across a wide speed range. The motor operates in constant torque mode from 5 to 50Hz, and in constant power mode from 50 to 100Hz, providing flexibility and efficiency for various applications.

Specifications:

 Model: EMA2VF 355-560

Standards: IEC

Efficiency Index: Standard

Frame Range: 355-560 (3KV, 6KV); 400 ~ 560 (10KV) cast iron machine base

Power range: 160 ~ 1600kw;

Voltage: 3KV, 6KV ,, 10KV

Frequency: 50Hz, 60Hz

Poles: 4681012 pole

Protection: IP55

Cooling: IC416

Bearings: SKF or C & U

Ambient temperature: -15 ℃ ~ 40 ℃

Installation: B3 right auxiliary junction box in the main terminal box ipsilateral

Auxiliary components: Each winding 2xPT100; each bearing 1xPT100; plus tropical

Surface color: RAL 5010

Main applications: fans, pumps, compressors, conveyor belts and other general-purpose machinery and equipment

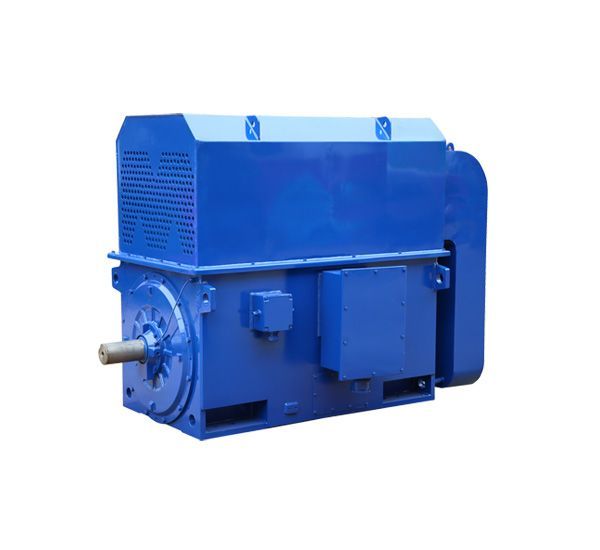

This series of motors features a robust steel plate welded box structure, offering a rigid design. The top-mounted closed air-cooling system ensures efficient heat dissipation and easy maintenance. The stator employs a press-fit structure, enhancing the quality and reliability of the F-class insulation system. VPI dipping further improves insulation properties and moisture resistance. IP44 rated, IP55 optional.

Specifications:

Model: EMAKK 355-630

Standards: IEC

Efficiency Index: Standard

Frame Range: 355-630 (3KV, 6KV); 400 ~ 630 (10KV) steel frame

Power range: 160 ~ 1600kw;

Voltage: 3KV, 6KV ,, 10KV

Frequency: 50Hz, 60Hz

Poles: 246 810 pole

Protection: IP55

Cooling: IC611

Bearings: SKF or C & U

Ambient temperature: -15 ℃ ~ 40 ℃

Installation: B3 right auxiliary junction box in the main terminal box ipsilateral

Auxiliary components: Each winding 2xPT100; each bearing 1xPT100; plus tropical

Surface color: RAL 5010

Main applications: fans, pumps, compressors, conveyor belts and other general-purpose machinery and equipment

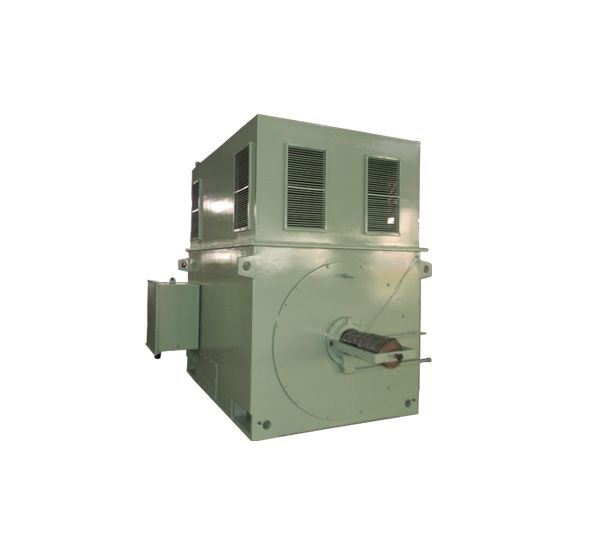

This series of inverter duty motors features a robust steel plate welded box structure, offering a lightweight yet rigid design. The top-mounted closed air-cooling system ensures efficient heat dissipation and easy maintenance.

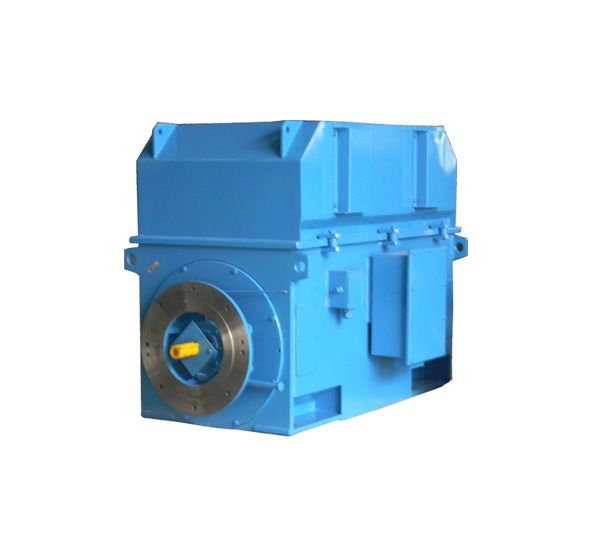

This series of products utilizes a robust steel plate welded box structure, offering a lightweight yet sturdy design. The top-mounted closed air-water cooling system ensures effective heat dissipation under demanding conditions, facilitating easy maintenance. The stator employs a press-fit structure, enhancing the reliability and performance of the F-class insulation system. VPI dip paint treatment further improves insulation properties, mechanical strength, and moisture resistance. IP44 rated,IP55 optional.

Specifications:

Model: EMAKS 355-630

Standards: IEC

Efficiency Index: Standard

Frame Range: 355-630 (3KV, 6KV); 400 ~ 630 (10KV) steel frame

Power range: 160 ~ 1600kw;

Voltage: 3KV, 6KV ,, 10KV

Frequency: 50Hz, 60Hz

Poles: 246 810 pole

Protection class: IP44, IP55

Cooling: IC611

Bearings: SKF or C&U

Ambient temperature: -15 ℃ ~ 40 ℃

Installation: B3 right auxiliary junction box in the main terminal box ipsilateral

Auxiliary components: Each winding 2xPT100; each bearing 1xPT100; plus tropical

Surface color: RAL 5010

Main applications: fans, pumps, compressors, conveyor belts and other general-purpose machinery and equipment
