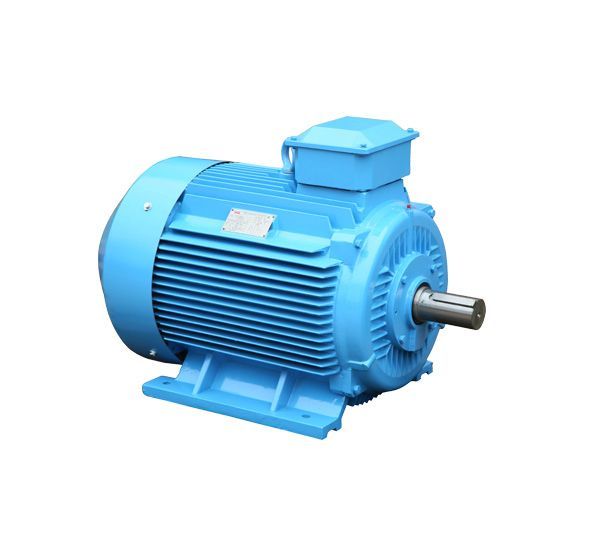

IE2 motors with super-efficient cast iron shell. Widely used in petroleum, chemical, metallurgy, cement, paper and other heavy industries, for a variety of general-purpose machinery and equipment such as compressors, fans, pumps, crushers and other machinery and equipment.

IEC Standard

Cooling method IC411, protection class IP55, F class insulation, Class B temperature rise.

Efficiency rating: IE2, efficient detection method based IEC60034-2-1, 2007 execution.

Eff1, efficient detection method based on IEC 60034-2, 1996 execution.

Australian efficiency rating AS / NZS 1359.5: 2004 Level 1B, B test.

Frame size: 80mm to 355mm.

2, 4, 6-pole optional

Rated power: 0.75kw ~ 400kw, S1 duty.

Rated voltage: 230 / 400V, 400 / 690V.

Rated frequency: 50 / 60Hz.

Ambient temperature: -15 ℃ ~ 40 ℃.

Bearing Brand: SKF / C & U

Wiring: 0.37-3kw use star connection 4-315kw use delta connection

Other Optional Specifications:

1 Heat protection: windings and / or bearings installed PTC, PT100.

2 with tropical moisture.

3 Drive: may need to use roller bearings, angular contact bearings, insulated bearings.

4 Special Paint: provide the corresponding special paint process for the high humidity, high temperature and highly corrosive environments.

5 junction box: from the drive end direction, can be installed on motor top, left and right.

6 cable gland material can be used: plastic, metal. May provide extended the lead.

7 optional protection class: IP65.

8 Enhanced Power Factor: 1.0, 1.15, 1.25.

9 closed fanless cooling solution since: IC410.

10. H-class insulation and high temperature environments.

11 compact structure increases a power.

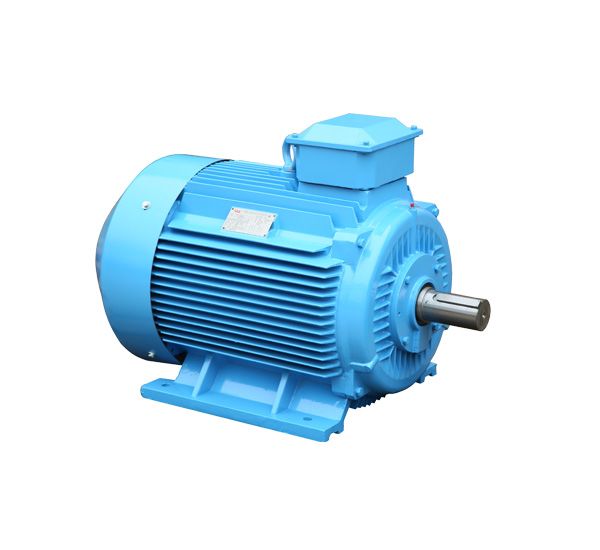

IE3/IE4/IE5 motors with super-efficient cast iron shell. Ultra-efficient motors are widely used in petroleum, chemical, metallurgy, cement, paper and other heavy industries, for a variety of general-purpose machinery and equipment, such as compressors, fans, pumps, crushers and other machinery and equipment.

Specifications:

EMAE3 series of ultra-efficient motors

IEC Standard

Cooling method IC411, protection class IP55, F class insulation, Class B temperature rise.

Efficiency rating: IE3, efficient detection method based IEC60034-2-1, 2007 execution.

Australia AS / NZS 1359.5: 2004, HEFF-B, Test Method B

NEMA ultra-efficient level

Frame size: 80mm to 355mm.

2, 4, 6-pole optional

Rated power: 0.75kw ~ 315kw, S1 duty.

Rated voltage: 220 / 380V, 380 / 660V, 230 / 400V, 400 / 690V.

Rated frequency: 50 / 60Hz.

Ambient temperature: -15 ℃ ~ 40 ℃.

Bearing Brand: SKF / C & U

Wiring: 0.75-3kw use star connection, 4-315kw use delta connection

Other Optional Specifications:

1 Heat protection: windings and / or bearings installed PTC, PT100.

2 with tropical moisture.

3 Drive: may need to use roller bearings, angular contact bearings, insulated bearings.

4 Special Paint: provide the corresponding special paint process for the high humidity, high temperature and highly corrosive environments.

5 junction box: from the drive end direction, can be installed on motor top, left and right.

6 cable gland material can be used: plastic, metal. May provide extended the lead.

7 optional protection class: IP65.

8 Enhanced Power Factor: 1.0, 1.15, 1.25.

9 closed fanless cooling solution since: IC410.

10. H-class insulation and high temperature environments.

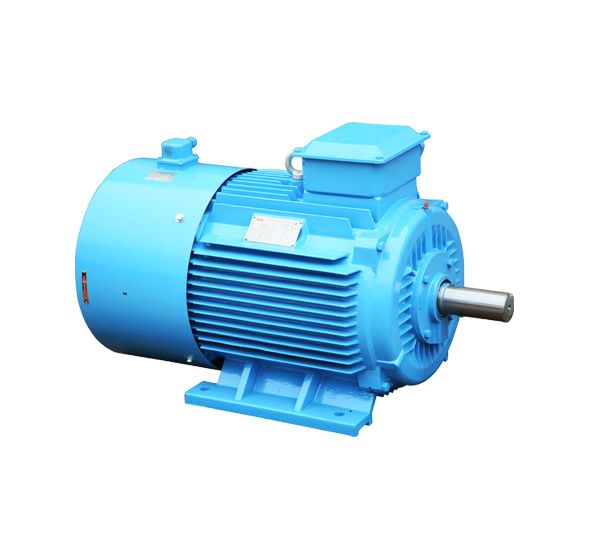

Three-phase inverter duty motor. Inverter duty motor using a separate line axial fan forced cooling with high performance electromagnetic design and insulation system. 5-50Hz constant torque, 50-100Hz constant power speed working condition.

constant power speed working condition.

Product Specifications

EMAVF series motors, variable speed / frequency.

IEC Standard

Cooling method IC416 (forced cooling), protection class IP55, F class insulation, B grade temperature

Frame size: 80mm to 400mm.

Pole: 4, 6, 8 optional

Rated power: 0.18kw ~ 560kw, frequency control.

Frequency range: 5 ~ 100Hz

5 ~ 50Hz: constant torque output

50 ~ 100Hz: constant power output

Rated voltage: 22 / 380V, 380 / 660V, 230 / 400V, 400 / 690V.

Ambient temperature: -15 ℃ ~ 40 ℃.

Bearing Brand: SKF / C & U

Wiring: 0.18-3kw use star connection, 4-315kw use delta connection

Other Optional Specifications:

1. Heat protection: windings and / or bearings installed PTC, PT100.

2. with tropical moisture.

3. Drive: may need to use roller bearings, angular contact bearings, insulated bearings.

4. Special Paint: provide the corresponding special paint process for the high humidity, high temperature and highly corrosive environments.

5. junction box: from the drive end direction, can be installed on motor top, left and right.

6. cable gland material can be used: plastic, copper, steel, stainless steel. May provide extended the lead.

7. optional protection class: IP65.

8. IC410 (totally enclosed fan-less self-cooling); IC411 (totally enclosed fan cooled).

9. H-class insulation, high-temperature environment

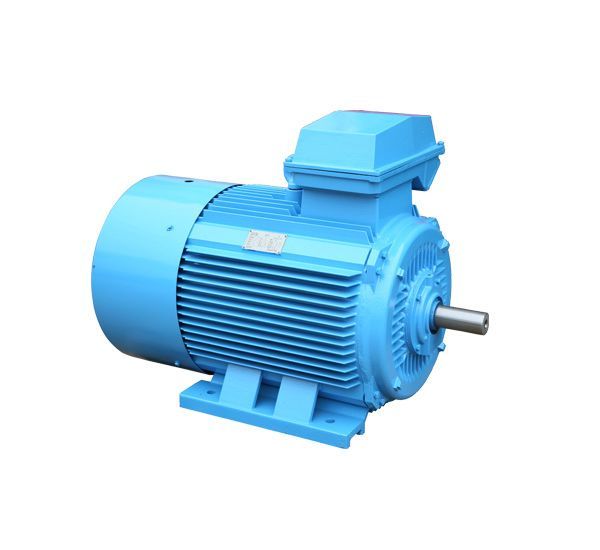

IE1 high power motors with super-efficient cast iron shell. Squirrel Cage Compact High-Power Motors widely used in  special heavy Industry fields

Specifications:

EMA2Z series low-voltage big-power motors

IEC Standard

Cooling method IC411, protection class IP55, F class insulation, Class B temperature rise.

Efficiency rating: IE1 (Eff2).

Frame size: 355mm to 450mm.

2, 4, 6, 8, 10, 12 pole optional

Rated power: 132kw ~ 1250kw, S1 duty.

Rated voltage: 380 / 660V, 400 / 690V.

Rated frequency: 50 / 60Hz.

Ambient temperature: -15 ℃ ~ 40 ℃.

Bearing Brand: SKF / C & U

Wiring: Delta Connection

Other Optional Specifications:

1. Heat protection: windings and / or bearings installed PTC, PT100, with tropical moisture.

2. Drive: may need to use roller bearings, angular contact bearings, insulated bearings.

3. non-drive end bearing file insulated.

4. Special Paint: provide the corresponding special paint process for the high humidity, high temperature and highly corrosive environments.

5. cable gland material can be used: plastic, metal. May provide extended the lead.

6. optional protection class: IP65

7. Enhanced Power Factor: 1.0, 1.15.

8. with inverter drive, force  fan cooling.

9. H-class insulation and high temperature environments.

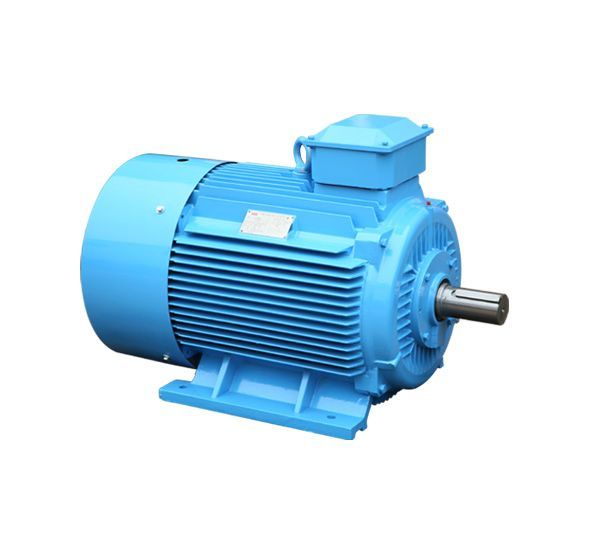

Multi-speed motors with an  iron shell. Using a single winding pole-changing way to achieve speed conversion, applicable to all types of machinery and equipment requiring multi-speed operation.

Product Specifications:

EMAD series multi-speed motors

IEC Standard

Cooling method IC411, protection class IP55, F class insulation, Class B temperature rise.

Efficiency rating: IE1 (Eff2).

Frame size: 80mm to 315mm.

Poles Optional: 2 / 4p, 4 / 8p, 4 / 6p, 6 / 8p

Rated power: 0.55kw ~ 160kw, S1 duty.

Rated voltage: 220 / 380V, 380 / 660V, 230 / 400V, 400 / 690V.

Rated frequency: 50 / 60Hz.

Ambient temperature: -15 ℃ ~ 40 ℃.

Bearing Brand: SKF / C & U

Wiring: 0.55-3kw use star connection 4-160kw use delta connection

Other Optional Specifications:

1. Heat protection: windings and / or bearings installed PTC, PT100.

2. with tropical moisture.

3. Drive: may need to use roller bearings, angular contact bearings, insulated bearings.

4. Special Paint: provide the corresponding special paint process for the high humidity, high temperature and highly corrosive environments.

6. junction box: from the drive end direction, can be installed on motor top, left and right.

7. cable gland material can be used: plastic, metal.
